Getting Started

(If you are reading this from within the ChimeraX Help browser, you may prefer trying out the Introduction to crystallographic model rebuilding in ISOLDE interactive tutorial.)

Starting ISOLDE

Assuming you already have ISOLDE installed (if not, you can do so via Tools/More Tools… in the ChimeraX menu), then you have three different ways to start it up:

• by typing isolde start in the command line;

• via the ChimeraX top menu: Tools/General/ISOLDE; or

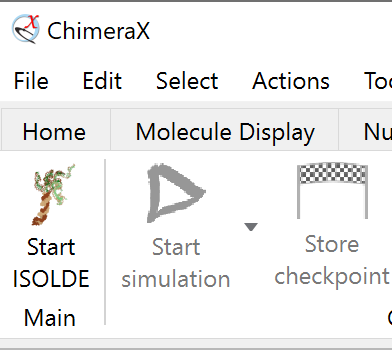

• by clicking the “Start ISOLDE” button on the ISOLDE tab of the ChimeraX ribbon menu:

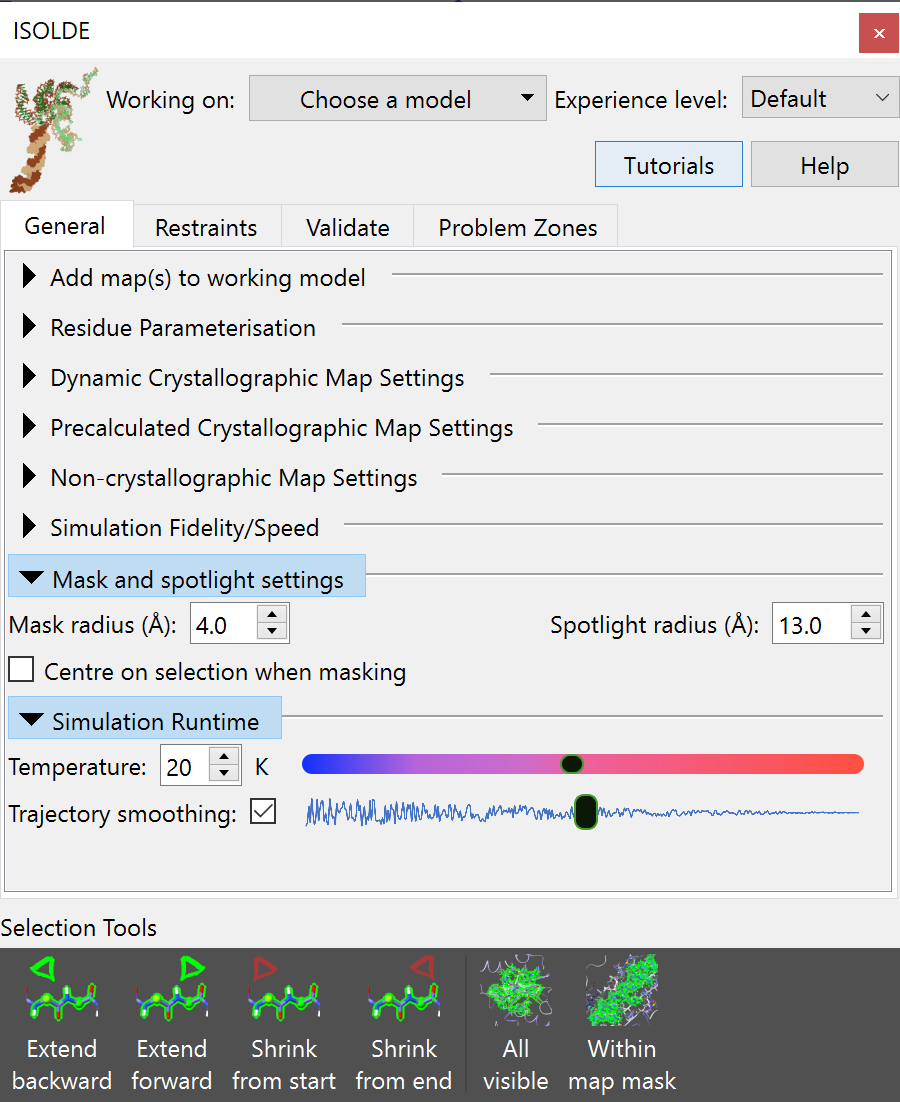

Whichever way you choose, the result should be a new floating panel looking something like this:

(NOTE: the ISOLDE panel is designed to be similar in size to the ChimeraX Log panel on most machines, and will “dock” there if dragged onto it. If working with a single display this is highly recommended)

ISOLDE is designed to only work on a single model at a time. You can choose the model to work on using the “Working on:” drop-down menu at the top of the ISOLDE panel, or using the isolde select command. Doing so will trigger a few changes. First, the model will be initialised into ISOLDE’s default view scheme: a greatly-reduced ribbon representation, with a sphere of displayed atoms around the display centre. Second, ISOLDE’s live geometry markup (highlighting suspicious protein backbone and sidechain conformations) will be added to the model:

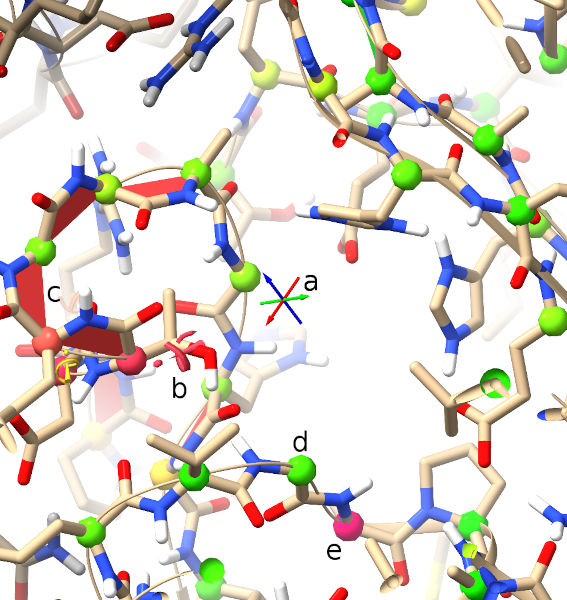

Basics of ISOLDE validation markup (sans map)

a	Crosshairs denoting the pivot point (centre of rotation) of the display. Red, green and blue point along the x, y and z axes respectively. Under normal circumstances the centre of rotation should remain in the middle of the screen - if for any reason you find it stops behaving as expected, this behaviour can be reinstated using the command cofr center showpivot true.
b	This exclamation mark/spiral motif denotes a rotamer outlier (that is, a sidechain in an unlikely conformation). The more unlikely the conformation, the larger and redder the indicator becomes. Below and to the left you can see a less severe “iffy” rotamer.
c	The red trapezoids you see here are highlighting non-proline cis peptide bonds (where the amide hydrogen and carbonyl oxygen are pointing in the same direction). In the real world these are vanishingly rare (around 3 per 10,000 amino acid residues), and real ones tend to be heavily stabilised by surrounding packing/H-bond interactions (and hence are usually among the better-resolved sites in the molecule). A string of non-proline cis bonds on a flexible loop as seen here is essentially impossible. The less-rare proline cis bonds are similarly shown in green, and peptide bonds twisted more than 30 degrees from planar in yellow.
d,e	The protein backbone is not infinitely free to move, but has clearly preferred conformations that have been well characterised by studying high-resolution structures. The best-established method for characterising backbone conformation is the Ramachandran plot, a plot of the phi (C-N-CA-C) and psi (N-CA-C-N) dihedral angles against each other. The probabilities of finding different (phi, psi) combinations have been mapped out in high detail for various groups of amino acids. While ISOLDE also provides a Ramachandran plot, the current probability score for each protein residue is mapped in real time to the colour of its alpha carbon (CA) atom as shown. Green denotes a “happy” residue, yellow is marginal (possible, but somewhat strained), and red is a serious outlier (still possible, but needs very strong support to justify it).

(Note: The rotamer, peptide bond and Ramachandran markups described above update automatically whenever the atomic coordinates change. As long as you have ISOLDE installed, you can add them to any loaded model using the rama and rota commands)

Preparing a model for simulation

(Note: if you just want to load up a model and maps ready to play with, use the command isolde demo crystal_intro )

While getting a clear picture of potential problems in a model is already somewhat useful, what ISOLDE is really all about is fixing them. To do that, it needs to be able to run molecular dynamics (MD) simulations. This in turn imposes a few requirements:

1. It must consist of residues that the MD engine knows about

   That is, each residue must have a corresponding definition in the MD forcefield dictating all the details of bond lengths, angles, charges, atomic radii etc. The version of the AMBER forcefield built in to ISOLDE supports protein, nucleic acid, most common sugars, water, metal ions, and approx. 13,000 of the more common ligands in the Chemical Components Dictionary. If your ligand is not recognised, it may still be possible to parameterise it in ISOLDE using the “Residue Parameterisation” widget on ISOLDE’s General tab (see below). Otherwise, if you are familiar with MD parameterisation you can provide your own AMBER-compatible parameters in the OpenMM ffXML format via the “Load residue parameters” button in the same widget (this can also be used to load any parameters you generated in a previous session).

   One important current limitation is that parameterisation of custom ligands which covalently bind to one or more other residues is not supported.

2. Each individual residue must be complete, including all hydrogens

   (Yes, even water). In MD every atom plays a role - the engine needs every atom present to determine what sort of residue it’s dealing with. Nevertheless, in keeping with the fact that ISOLDE is about model building and refinement rather than traditional equilibrium MD, a few artificial arrangements are allowed. In particular, it is not necessary to “cap” dangling N- and C-termini (or 5’ and 3’ termini in nucleic acids) at chain breaks:



   This dangling N-terminus is fine



   .. as is this dangling C-terminus

   Additionally, for all protein residues other than proline, sidechain truncations to CA, CB, CG or CD are allowed. For truncations that ISOLDE doesn’t support, the “Unparameterised Residues” widget on ISOLDE’s Validation tab can be used to fill in the missing atoms.

   The most convenient way to add hydrogens (in a manner that follows the above rules) is by using the ChimeraX addh command. Type usage addh in the ChimeraX command line for complete instructions, but in most cases the straightforward addh will give you the most desirable result.

   (Note: if you have metal ions present and your geometry is not perfect, you may find addh refusing to protonate one or more nearby peptide nitrogens. The resulting incomplete residue will be flagged by ISOLDE’s Unparameterised Residues widget, which can be used to build in the missing hydrogen. Incorrect geometry on ligands is another common cause of addh errors. In these cases you can either correct them with the Unparameterised Residues widget, or delete hydrogens and try again with addh template true to tell ChimeraX to use the reference geometry stored in the Chemical Components Dictionary to define the chemistry.)

   In general, I recommend adding sidechains wherever possible - even if there is minimal density to support them, in the MD environment the contributions from each sidechain generally help in maintaining the geometry of surrounding residues. Sidechains can be conveniently rebuilt using the swapaa mouse mode provided by ChimeraX and found in the “Right Mouse” tab in the menu ribbon above the main GUI:

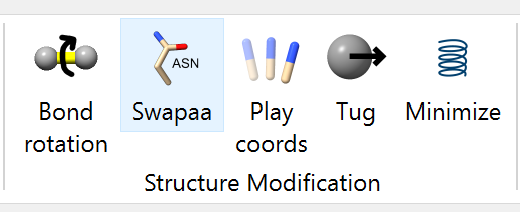

   Right-clicking on a protein atom and dragging up/down will iterate through building all standard amino acid residues. Using this tool to simply “mutate” the residue to its own identity will give you a complete sidechain.

   (NOTE: You should not perform edits that add or remove atoms while a simulation is running.)

3. Alternative conformations (altlocs - that is, the same atom in two or more different places) are not currently supported. This is usually not a problem, since at the resolutions ISOLDE can help the most altlocs aren’t generally resolvable in the data anyway! Any defined altlocs remain with the model and will be written to the output, but cannot be visualised. This can of course be dangerous - any large rearrangement will act only on the current altloc, leaving the other invisibly in its original position. For this reason, ISOLDE checks for the presence of altlocs when initialising a model, and offers to remove them if present.

Adding maps

The primary use of ISOLDE is of course the fitting and refinement of an atomic model into one or more experimental maps. This is achieved via an interactive implementation of molecular dynamics flexible fitting (MDFF). In brief, MDFF converts your map into a field of potential energies overlaid on a molecular dynamics simulation, with each atom feeling a force proportional to the energy gradient at its current position. In effect, this causes atoms to “fall” into the high-density regions of the map.

ISOLDE is designed with the aim of seamless operability between direct real-space maps (e.g. as generated from cryo-EM experiments) and maps calculated from reciprocal-space data (typically derived from x-ray crystallography). Depending on your needs, three general types of maps are supported as described below, and a model may be associated with any combination (and any number, memory permitting) of these map types.

Real-space maps

(NOTE: within ChimeraX, you may prefer to familiarise yourself with the use of real-space maps in the interactive Bulk Flexible Fitting tutorial.)

Any real-space map format recognised by ChimeraX can be used as a MDFF potential by ISOLDE with a few simple steps. Simply load your map along with your model, e.g.

open 6eyd; open 3983 from emdb

If the model and map are not perfectly aligned, you can easily obtain an optimised rigid-body fit using ChimeraX’s fitmap command.

fitmap #1 inMap #2

(NOTE: by default, fitmap fits the model by changing the rigid-body transform mapping model coordinates to scene coordinates, rather than changing the model coordinates themselves. ISOLDE, on the other hand, for performance reasons expects the map(s) and model to be in the same absolute reference frame (with model coordinates identical to scene coordinates). For this reason, you should do any rigid-body fitting BEFORE selecting the model for ISOLDE - upon initialisation the model coordinates will be updated to place the model in the same absolute frame as the map. If you have good reason to do a rigid-body shift AFTER initialising the model, adding the argument “moveWholeMolecules false” will tell fitmap to update coordinates without changing the transform.)

Once aligned, the map may be associated with the model either by using the “Add map(s) to working model” widget on the ISOLDE General tab, or

clipper associate #2 to #1

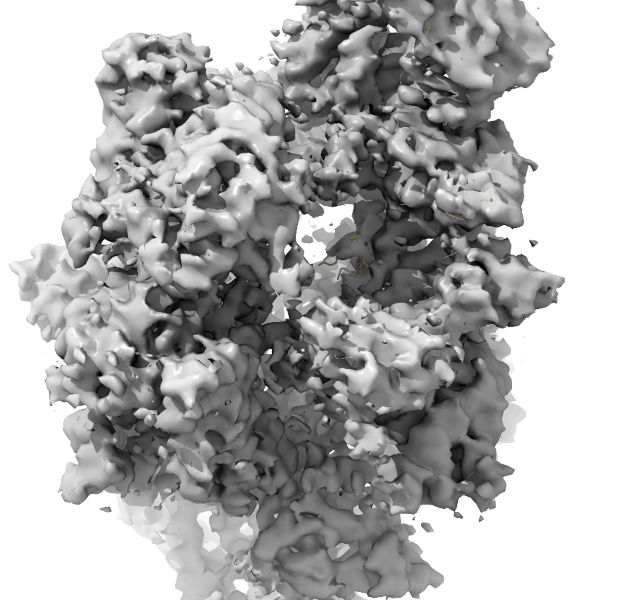

This should change your view of the model and map from something like this:

to a visualisation mode similar to the traditional crystallographic view:

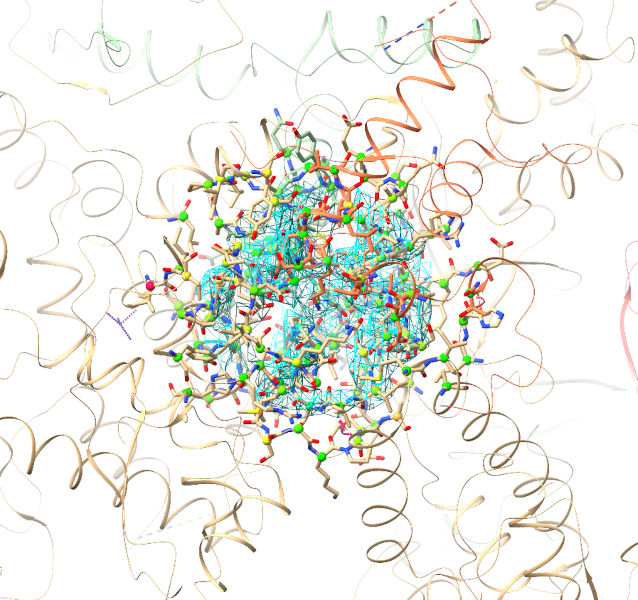

Default Clipper/ISOLDE “spotlight” model/map view. The map appears as a sphere of density around the centre of rotation. Residues with atoms within the spotlight radius have their atoms shown; the remainder of the molecule is shown as a minimalist cartoon. You can adjust the spotlight radius using the command clipper spotlight radius <radius> or using the “Mask and spotlight settings” widget on ISOLDE’s General tab - but keep in mind that large radii will begin to cause noticeable lag in navigation.

Upon registration, ISOLDE automatically registers the map as a MDFF potential. The coupling constant (defining how strongly the map “pulls” on atoms) is automatically set by analysis of the gradients in the region close to the atomic model.

X-ray maps (or other maps calculated from Fourier coefficients)

An x-ray crystallography experiment yields a set of measured intensities corresponding to the amplitude component of the Fourier transform of the electron density in the crystal environment. In order to generate a real-space map, the amplitudes must be combined with a matching set of phases. The core challenge in crystallography is that the original phase information is not measurable, and hence estimates must be obtained by other means. Historically, initial phases were typically obtained either by molecular replacement with the conserved cores of close homologues, and/or anomalous scattering by one or more types of heavy atom in the crystal. In the modern era of reliable protein structure prediction, by far the most common method is molecular replacement using the high-confidence components of predicted models. The initial phases are then improved by building and refining your model into the map - as the quality of the model improves, the quality of the map improves, allowing further improvement to the model, etc..

Initial solution of the phase problem (e.g. with the aid of Phaser) should have already happened before you load your model into ISOLDE. If the molecular replacement solution is marginal and/or highly incomplete, it would be a good idea to use an auto-building tool such as phenix.autobuild to extend it first. See Starting From a Molecular Replacement Solution for a Flexible Protein to see how you can use the molecular replacement solution to relatively quickly fit a complete predicted model to the data.

When loading structure factors, you have two choices:

• Use “live” maps calculated directly from your model and the experimental amplitudes (preferred); or

• Use “static” maps derived from pre-calculated amplitudes and phases (e.g. as output from Phaser, phenix.refine or phenix.maps).

Both options have their own pros and cons, and are described in detail below. In either case, the input is an MTZ file. ISOLDE will automatically generate live or static maps (or a combination of both types) depending on what it finds in the loaded file. Crystallographic maps may be added to the model currently selected in ISOLDE using the “Add map(s) to working model” widget, or added to any atomic model using a command such as:

open reflections.mtz structureModel #1

Multiple crystallographic datasets may be associated with a single model, as long as the space group and cell dimensions match. Maps will be generated for each data column recognised by the Clipper plugin. Any unwanted maps may be safely closed via ChimeraX’s model panel:

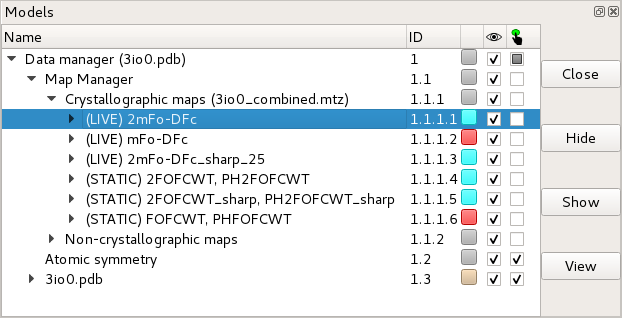

The ChimeraX model panel showing six crystallographic maps and one non- crystallographic map associated with an atomic model. The unwanted maps may be closed by selecting their entry in the tree then clicking the “Close” button at top right. You can close an entire crystallographic dataset by selecting the corresponding entry with name starting “Crystallographic maps”.

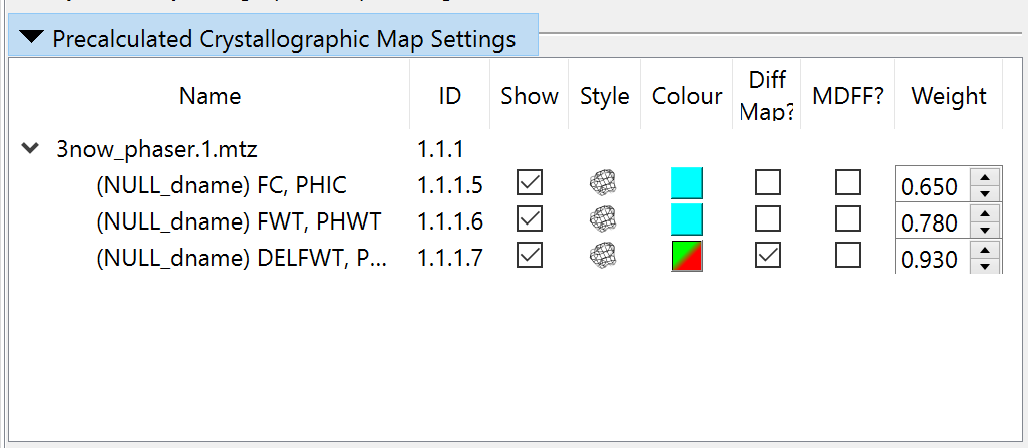

Static (pre-calculated) crystallographic maps

(WARNING: in many refinement packages (including Phenix) the default behaviour is to include the free reflections when generating maps for visualisation and manual model building. By Parseval’s theorem this is equivalent in effect to including these reflections when refining in reciprocal space. While this may be OK when changing only a small fraction of the model, a typical MDFF session re-fits every atom to the map. While there is still some argument as to the final effect of this, using maps including the free set WILL render Rfree and Rfree-Rwork unreliable as measures of the quality of fit. Unfortunately there is no way to determine whether an arbitrary set of amplitudes and phases includes the free set or not, so it is up to you to ensure that free reflections are NOT included. A template for a suitable phenix.maps input file is provided below. For the above reasons, all static maps will be disabled as MDFF potentials by default, and must be explicitly enabled for simulation using the controls in the “Precalculated Crystallographic Map Settings” widget.)

The Clipper plugin uses some very simple name-based heuristics to decide whether a given set of amplitudes and phases are normal (2Fo-Fc) or difference (Fo-Fc) maps. If it gets this wrong, you can change it on the “Precalculated Crystallographic Map Settings” widget (where you can also adjust display styles and colours):

Live crystallographic maps

(NOTE: While ISOLDE’s live crystallographic maps work well in the majority of cases, there is currently no handling of severe data pathologies such as twinning, strong translational non-crystallographic symmetry, strong ice rings, etc.. In such cases your choices are to work with maps pre-calculated using a package designed to handle these, or to pre-process the F/sigF data elsewhere to reduce the effects of these problems.)

If your MTZ file contains experimental intensities (I/sigI) or amplitudes (F/sigF), then a set of live sigma-a weighted crystallographic maps will be generated directly from the combination of these with phases calculated from the atomic model. Unlike with the pre-calculated maps, any changes to the atomic model automatically triggers a recalculation of all live maps. This happens in the background, with minimal effect on graphical performance other than a slight hitch when the visualisation of the new maps is loaded in.

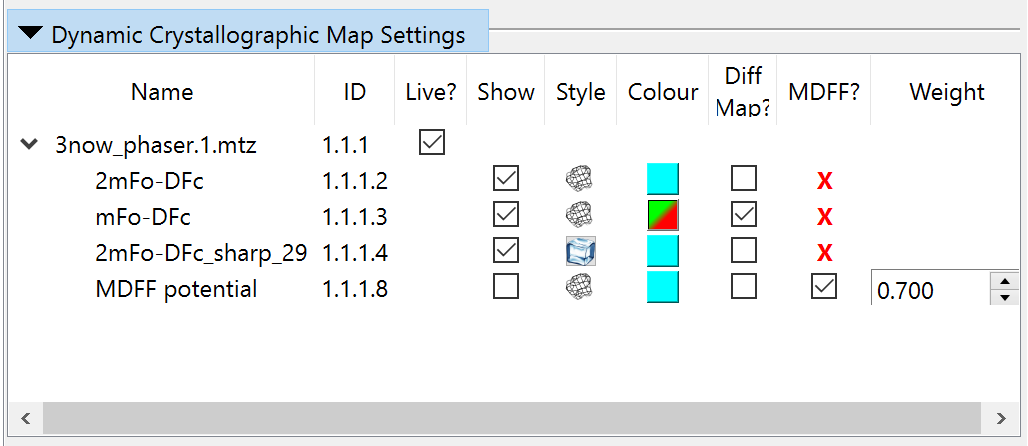

(NOTE: live updating for a given dataset can be toggled using the checkbox in the “Live?” column of the “Dynamic Crystallographic Map Settings” widget.)

(NOTE: live map updates do not update the MDFF potential - that is, the fitting force the mobile atoms feel - while a simulation is running. The potential will only change on starting a new simulation.)

Besides the obvious advantage of providing near-real-time feedback on your model improvement progress, working directly with the experimental data ensures that ISOLDE knows and controls exactly what goes into each map. Three maps will be generated for visualisation purposes:

• a standard 2mFo-DFc map

• a 2mFo-DFc map with a moderate amount of B-factor sharpening or smoothing applied (with the amount of sharpening/smoothing decided heuristically based on resolution)

• a mFo-DFc difference map

Each of the above maps is generated using the full set of reflections, and for this reason is blocked from use as a MDFF potential. Instead, ISOLDE also creates a special map (helpfully named “(LIVE) MDFF potential”) optimised for use as a MDFF potential (including exclusion of the free set). This map is hidden by default, but can be displayed via the Model Panel or the “Dynamic Crystallographic Map Settings” widget at any time.

phenix.maps template

 maps {
   input {
     pdb_file_name = None # Replace this with the name of your pdb file
     reflection_data {
       file_name = None # Replace this with the file containing your structure
                        # factors (e.g. 1xxy-sf.cif or reflections.mtz)
       labels = None
       high_resolution = None
       low_resolution = None
       outliers_rejection = True
       french_wilson_scale = True
       french_wilson {
         max_bins = 60
         min_bin_size = 40
       }
       sigma_fobs_rejection_criterion = None
       sigma_iobs_rejection_criterion = None
       r_free_flags {
         file_name = None
         label = None
         test_flag_value = None
         ignore_r_free_flags = False
       }
     }
   }
   output {
     directory = None
     prefix = None
     job_title = None
     fmodel_data_file_format = mtz
     include_r_free_flags = False
   }
   scattering_table = wk1995 it1992 *n_gaussian neutron electron
   wavelength = None
   bulk_solvent_correction = True
   anisotropic_scaling = True
   skip_twin_detection = False
   omit {
     method = *simple
     selection = None
   }
   map_coefficients {
     map_type = 2mFo-DFc
     format = *mtz phs
     mtz_label_amplitudes = 2FOFCWT
     mtz_label_phases = PH2FOFCWT
     fill_missing_f_obs = True
     sharpening = False
     sharpening_b_factor = None
     exclude_free_r_reflections = True # IMPORTANT: keep this set to True
     isotropize = True
   }
   map_coefficients {
     map_type = 2mFo-DFc
     format = *mtz phs
     mtz_label_amplitudes = 2FOFCWT_sharp
     mtz_label_phases = PH2FOFCWT_sharp
     fill_missing_f_obs = True
     sharpening = True
     sharpening_b_factor = 80 # Reasonable for most ~3A maps
     exclude_free_r_reflections = True # IMPORTANT: keep this set to True
     isotropize = True
   }
   map_coefficients {
     map_type = mFo-DFc
     format = *mtz phs
     mtz_label_amplitudes = FOFCWT
     mtz_label_phases = PHFOFCWT
     fill_missing_f_obs = TRUE
     sharpening = False
     sharpening_b_factor = None
     exclude_free_r_reflections = True # IMPORTANT: keep this set to True
     isotropize = True
   }
 }
